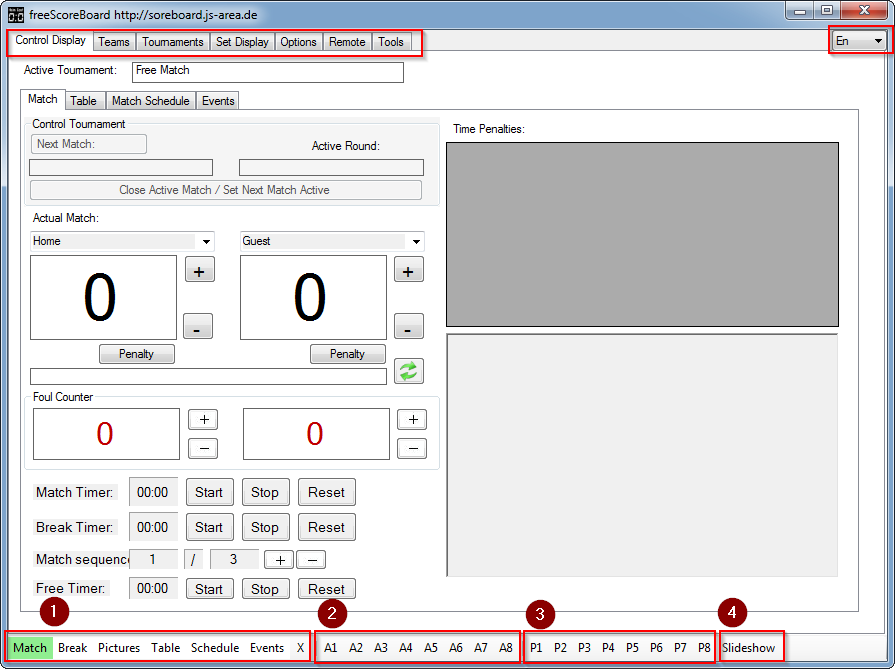

Control Window
The tabs on the top and the control ribbon on the bottom is always available. The tab “control display” contains all controls to manage matches and a tournament. The other tabs contain management elements.
With the buttons in area 1 you can switch the display layers on the score board. By click on the X you can turn off/on the score board.
With the buttons in area 2 you can play/stop 8 different audio files. In the tab “options” you can assign audio files to the buttons. With this function you can play applause or any signal whenever you want.
With the buttons in area 3 you can control the display of 8 different pictures. In the tab “options” you can assign pictures to the buttons. Where these pictures are displayed can be set on the tab “set display”. With this function you can show a sponsor logo whenever you want. It is also possible to switch to the layer “pictures” as long as the left mouse button is hold. This must be set in the options.
With the buttons in area 4 you can start/stop a slide show for these 8 pictures. The slide show parameters must be set in the options.
On the top right you can switch the language of the program on the fly.
